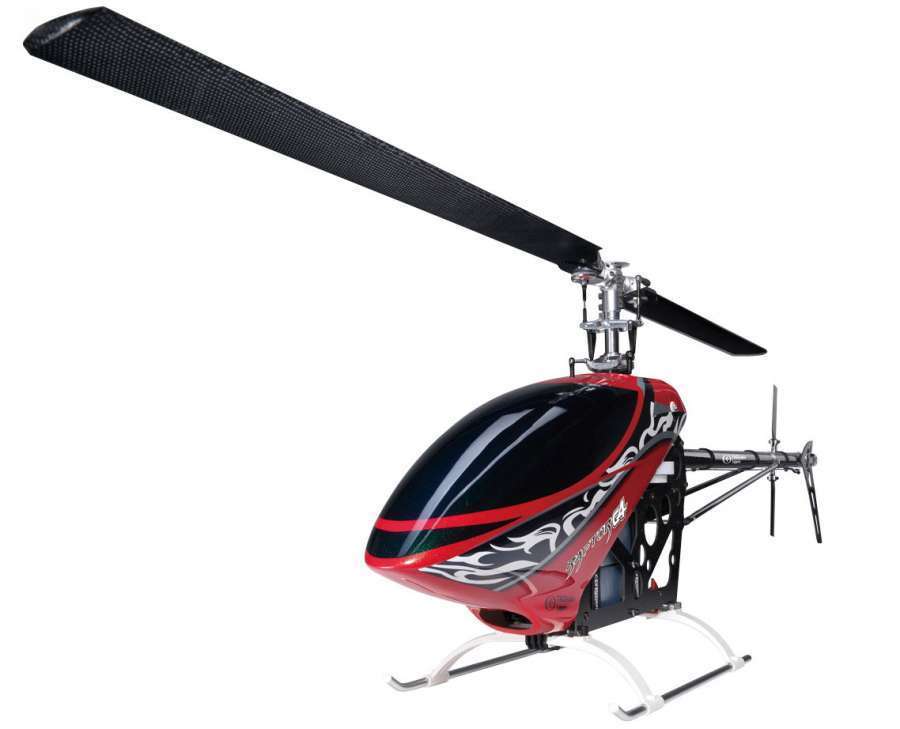

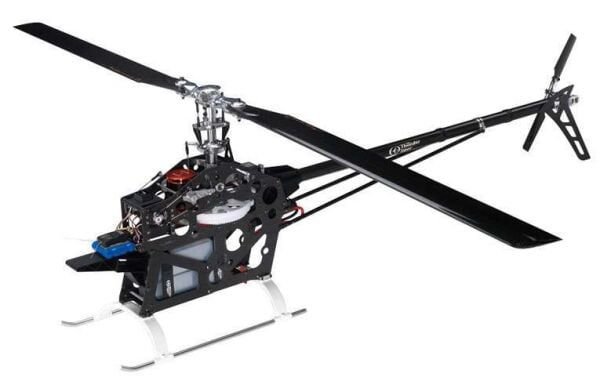

Raptor E720 Flybarless EP Helikopter Kit
Thunder Tiger Raptor E720 G4 Flybarless Elektikli Helikopter
En Zorlu ve İddialı 3D ve F3C Pilotları İçin FAI Dünya Şampiyonu Shigetada Taya Tarafında Tasarlanmıştır...
- Uzunluk: 1366mm
- Genişli: 221mm
- Ana rotor pal/çap: 690 - 720mm ( 1563 - 1603 mm)
- Kuyruk rotor çapı: 280mm
- Uçuş ağırlığı: 3650gr
- Yükseklik: 429mm
- Anal Pal: 690 - 720mm
- Ana dişli / Pinion: 111T/11T
- Dişli oranı(E:M:T) 1:10.09:4.67
- Torque Tube
- Full Karbon
- Batarya Maks Ölçüler: 215x52x105mm
- Gerekli olanlar: 6 kanal kumanda, 4 adet hızlı dijital servo, 3-Axisli gyro ve Kuyruk servosu, Brushless Motor ve ESC, 10-12S LiPo batarya, 71cm karbon pal
1. Easy & fast conversion between flybared or flybarless rotor system
2. Hardened 15mm steel main shaft
3. Adjustable Bell-Hiller mixing ratio can be set for F3C or 3D (Raptor 90G4 & Raptor E720)
4. Aerodynamic carbon paddle (Raptor 90G4 & Raptor E720)
5. Collective pitch range +/-15 degrees (Raptor 90G4 & Raptor E720)
6. High-quality, color shifting preprinted FRP canopy
7. Lightweight and rugged landing skid for low center of gravity
8. Rigid 2mm carbon main frame
9. Lightweight, high- quality screws hardware
10. All metal servo horns & control arms assembly eliminate the need for upgrades
11. Lightweight and vented,high-duty 17mm helical main gear
12. Innovative Quick-calibration system
13. A easy conversion between nitro and electric powering
14. Heavy-duty helical bevel tail gears
15. Lightweight, one-piece machined metal tail case
16. All metal, high–precision & heavy-duty tail rotor system
17. Efficient torque tube drive system for crisp rudder response and 100% power transfer
18. Easy-install rudder rod guide
19. Lightweight one-piece metal tail boom bracket
20. 3D carbon vertical fin and carbon tail boom support
21. Optional carbon horizontal fin available (Option parts)
